Connettore della mezza luna di economia di spazio, installazione coassiale di alta densità del connettore della femmina

Informazioni di base
Luogo di origine: Shenzhen, Cina
Marca: RAYMO
Certificazione: SGS, RoHS2.0, ISO:9001-2015, CE, REACH
Numero di modello: ERA.00.250.CLL
Quantità di ordine minimo: 5 pezzo/pezzi
Prezzo: negotiable
Imballaggi particolari: Sacchetto & cartone di plastica
Tempi di consegna: 5-7wds
Termini di pagamento: Western Union, L/C, D/A, D/P, T/T
Capacità di alimentazione: settimana 5000Pieces/
Tipo: INCAVO DEL PANNELLO DI ERA Shell gradua: 00S, 0S, 1S, 2S
Contatti: PIN COASSIALE, 50ohm Genere: Contatto femminile
Isolante: Il PPS, SBIRCIATA è disponibile Posto del IP: IP50
Evidenziare:

il PWB contatta il connettore

,

connettore del gomito del cavo

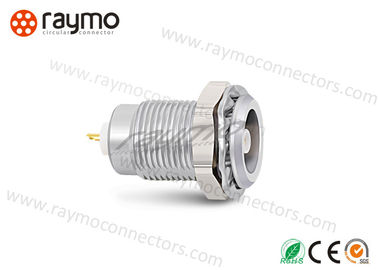

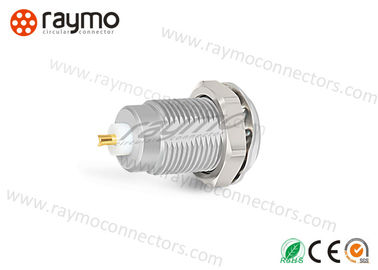

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector



RAYMO Factory Intrce





RAYMO Provided Service for YOU



Description
RAYMO PART NO LEMO PART NO
RM-ERA-00S-250-KS ERA.00.250.CLL





Shell Size and Contact No.



Shell size Contacts no. ( Both with Solder & PCB type )
00S 1(coaxial)
0S 1(coaxial) 2 3 4
1S 1(coaxial) 2 3 4 5 6







Features







Technical Characteristics



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) 5000 mating cycles




Applications



  1.  Medical
  2. Test & measurement
  3. Transport
  4. Defense & Security
  5. Broadcast
  6. Energy



Pictures and Dimension

Connettore della mezza luna di economia di spazio, installazione coassiale di alta densità del connettore della femmina 0



Why choose us
  • 8 years focus on connectors
  • Save your costs at least 50%
  • professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
  • customized your own connectors according to your requirement
  • Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
  • Help customers to make model selection : Just e-mail us and give the prtion information
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF  and others ways according the your needs.
  3. How transport?  Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.
