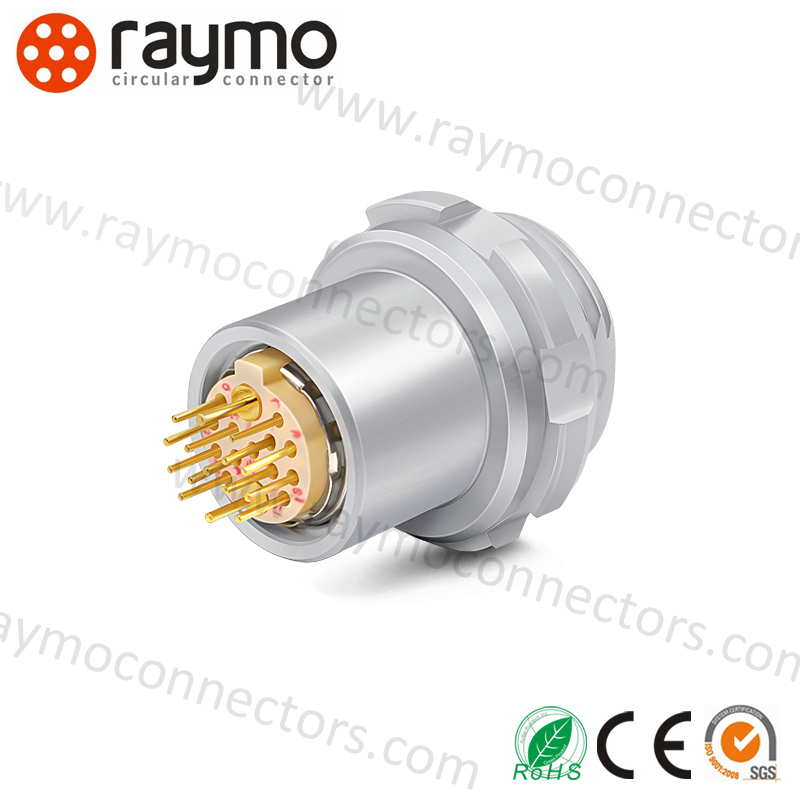

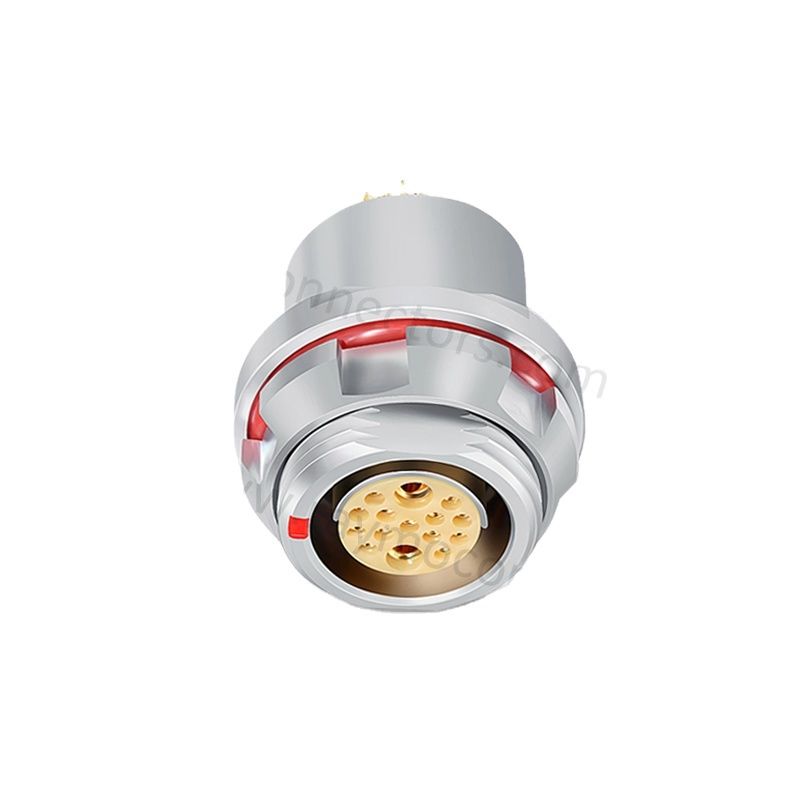

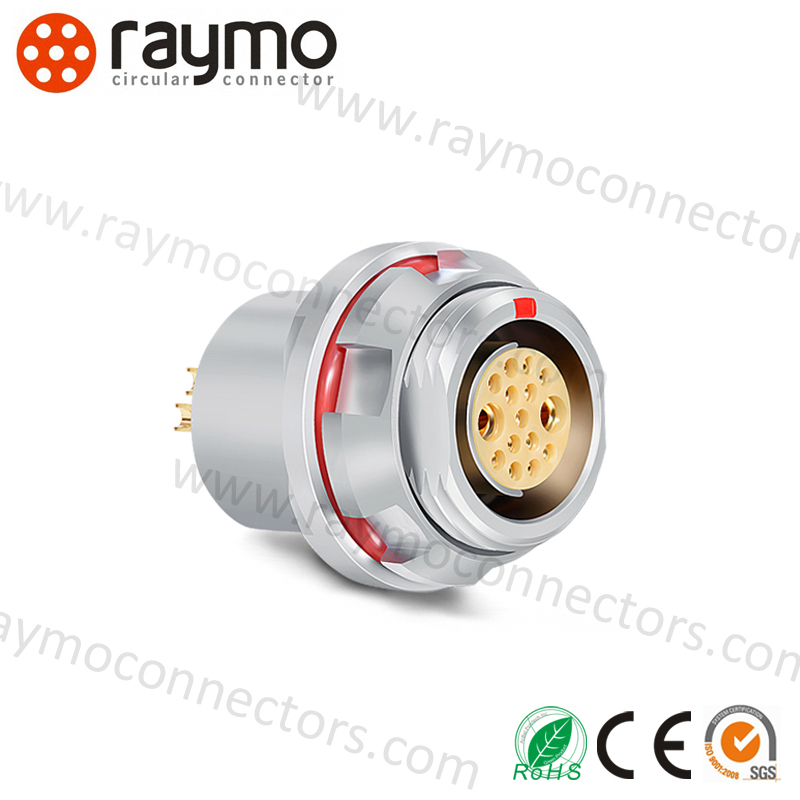

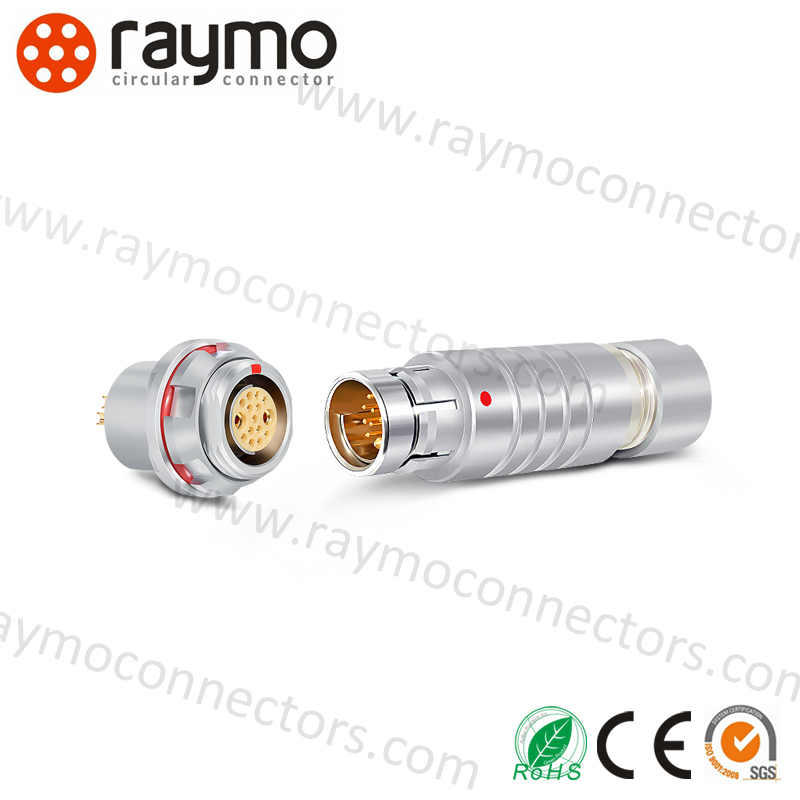

DIN Female Circular Push Pull Connector 15pins IP68 AF1031

DIN Female Circular Push Pull Connector 15pins IP68 AF1031
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 DIN Female Circular Push Pull Connector 15pins IP68 AF1031
Informazioni di base
Place of Origin: Guangdong, China
Marca: RAYMO
Model Number: RM-DBP-AF1C-A15-KS
Minimum Order Quantity: 1
Prezzo: $7.47-8.28
Contattaci
Type: DIN Gender: Female
Shell size: AF/1031 Contact No.: 15pins
Insulator: PPS/PEEK Contact type: female solder contacts
IP Rating: IP68 Endurance: 5000 mating cycles
Humidity: up to 95% at 60° C/140F Temperature Range: -65° C, +200° C
Vibration Resistance: 15 g [10 Hz - 2000 Hz] Shock Resistance: 100 g [6 ms]
Salt Spray Test: >96 hr Climatical Category: 50/175/21
Shielding: >75 dB [at 10 MHz], >40 dB [at 1 GHz]
Evidenziare:

DIN female circular connector 15 pins

,

IP68 waterproof push pull connector

,

AF1031 circular push pull connector

Traxial Circular Connector
Product Specifications
Attribute Value
Type DIN
Application Audio & Video
Gender Female
Connector Type Circular Push Pull connector
Shell size AF/1031
Contact No. 15pins
Insulator PPS/PEEK
Contact type Female solder contacts
IP Rating IP68
Warranty 5000 Times Push Pull
MOQ 1PC
Product Overview
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 0 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 1 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 2 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 3
Technical Characteristics
Endurance(shell) 5000 mating cycles Humidity up to 95% at 60° C/140F
Temperature Range -65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [6 ms] Salt spray corrosion test >96 hr
Climatical Category 50/175/21 Shielding (min) >75 dB [at 10 MHz], >40 dB [at 1 GHz]
RM-DBP-AF1C-P15KP Traxial circular connector
Free sample available with competitive pricing to reduce your costs
IP Rating: IP 68
Certifications: ISO9001:2008 / CE / ROHS / SGS
Shell model: DBP CIRCULAR CONNECTOR
Shell Size: 1031 series / AF
Gender: Female
Contact No.: 15 PINS DIN CONNECTOR
MOQ: 1pcs
Delivery: 3-5 working days
Our Company
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 4

Raymo connector is a professional supplier of high-end connector solutions, with advanced production equipment, testing equipment, high-end CNC lathe and a professional team. We are dedicated to providing innovative solutions and high quality products for industrial, telecommunication, military, medical and automotive markets.

By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification, ROHS certification, CE certification, Reach certification and other authoritative certifications.

Related Products
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 5
B,K,S,P series connector
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 6
Fischers compatible connector S SS SC DBPU DBEU DBE WSO
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 7
Deep sea watertight connector
Applications
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 8
  • Medical equipment like diagnostic devices
  • Instrumentation for test & measurement
  • Transport avionics
  • Energy applications including nuclear
  • Defense & security communication systems
  • Broadcast equipment for studios and outside broadcasting
  • Extreme environments like motorsports
Packing & Delivery
Packing Method
  • 10 or 20 pcs in a PE bag
  • Cable assembly one piece in one bag, then put into carton
  • Every 50 or 100 pcs of connectors in a small box (size:19cm*15cm*10cm)
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 9 DIN Female Circular Push Pull Connector 15pins IP68 AF1031 10
Shipping Terms

Loading Port: Shenzhen, China

  • 1~10pcs: 3~5 working days
  • 11~100pcs: 5~7 working days
  • 101~500pcs: 7~10 working days

Goods can be shipped by air shipping, sea and other methods. Delivery time depends on order quantity and exact items.

Our Exhibition
DIN Female Circular Push Pull Connector 15pins IP68 AF1031 11
  • 2020.11 Electronica Munich, Germany
  • 2020 9.24-9.26 Testing Expo, Shanghai
  • 2019 9.24-9.26 Testing Expo, Shanghai
  • 2018 11.12-11.15 Electronica Munich, Germany
  • 2017 9.11-9.16 NAB Show, Netherlands
  • 2016 4.11-4.15 HK Fair
  • 2015 10.2-10.7 ICEEB, Brasil
  • 2014 10.11-10.15 HK Fair
  • 2014 4.11-4.15 HK Fair
FAQ
1. Can I order a small quantity?
Yes, you can, 1 piece is acceptable.
2. What quote do you offer?
EXW, FOB, CIF and other methods according to your needs.
3. How is transport handled?
Sea Freight, Air Freight and other Express Delivery options available.
4. What is the quality guarantee for your products?
We have passed ISO9001:2015 Quality Management System Certification, CE, REACH, RoHS, SGS. If quality doesn't meet standards, you can exchange goods for free.
5. Do you have after-sales service?
Certainly, you can contact us at any time.
Datasheet, Lead Time, Inquiry Now!
