Casa ProdottiCollegamento J30JJ30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment

J30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment

J30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment
J30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment
J30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment J30J Series 9-Pin Connector 250V 500VAC for Electronic Equipment
Informazioni di base
Marca: Raymo
Certificazione: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-J30J
Documento: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Prezzo: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Termini di pagamento: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000PCS Per Month
Contattaci
Valutazione di tensione: 250 V. Tensione di resistenza: 500VAC
Intervallo di temperatura: -55 ̊+125 °C Lunghezza del cavo: Come richiesto
Lunghezza del filo: 50 cm, 500 mm Perni disponibili: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Conduttore centrale: Legatura di rame, placcatura d'oro Applicazione: Apparecchiature elettroniche
Evidenziare:

J30J series 9-pin connector

,

250V 500VAC electronic connector

,

J30J series electrical equipment connector

J30J-9TJS 9 Pins J30J Series Connector ≤1.01X10-3 Pa.cm3/s Leak Rate

Designed for demanding electrical connection applications requiring durability and reliability.

Key Specifications
Attribute Value
Voltage Rating 250V
Withstanding Voltage 500VAC
Temperature Range -55～+125 ℃
Cable Length Customizable
Wire Length Options 50cm, 500mm

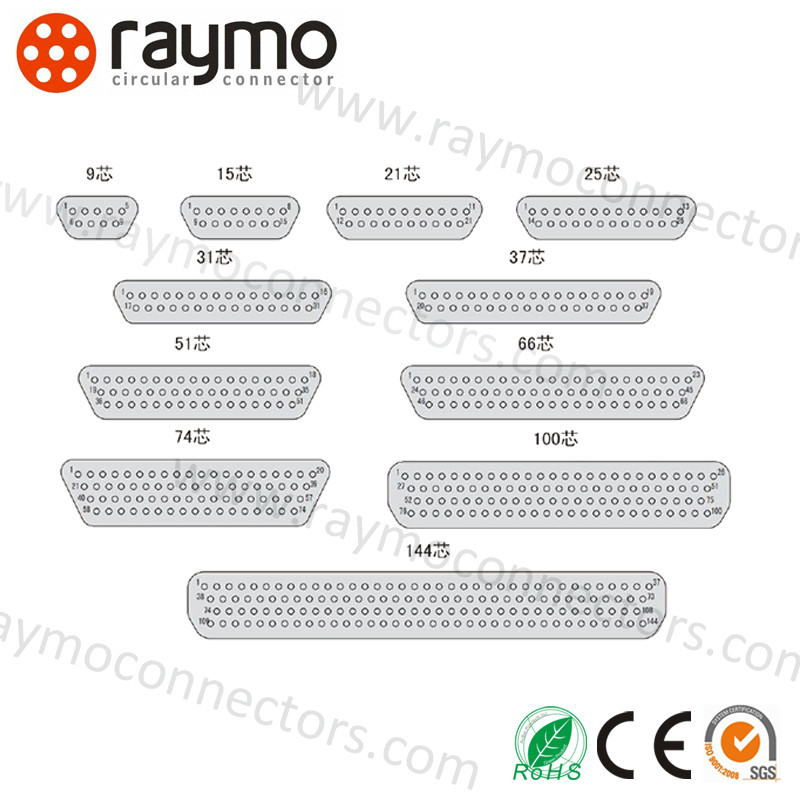

Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Center Conductor Copper Alloy, Gold Plating
Primary Application Electronic Equipment
Product Overview

The J30J series connector features Micro Twist Pin Contact design for secure, stable connections in critical applications. With excellent insulation properties and wide temperature tolerance, it delivers reliable performance in challenging environments.

Technical Parameters
  • Mating Cycle: 500 Times
  • Grid Distance: 2.54*2.54
  • Leak Rate: ≤1.01X10-3 Pa.cm3/s
Industrial Applications
  • Industrial Machinery: Secure component connections for efficient machine operation
  • Aerospace Technology: Certified for CE, RoHs, REACH, and ISO9001:2015 compliance
  • Medical Equipment: Stable connections critical for patient safety
  • Automotive Electronics: High durability for demanding environments
  • Telecommunications: Reliable data transmission with customizable cable lengths
  • Robotics: Flexible installation options for optimal performance
Technical Support

Comprehensive product support available for technical inquiries, troubleshooting, and product-related assistance.
