Casa ProdottiCollegamento J30JJ30J Series 9-Pin Connector 250V for Electronic Equipment

J30J Series 9-Pin Connector 250V for Electronic Equipment

J30J Series 9-Pin Connector 250V for Electronic Equipment
J30J Series 9-Pin Connector 250V for Electronic Equipment
J30J Series 9-Pin Connector 250V for Electronic Equipment J30J Series 9-Pin Connector 250V for Electronic Equipment
Informazioni di base
Marca: Raymo
Certificazione: CE/RoHs/REACH/ISO9001:2015
Numero di modello: J30J-21TJS
Documento: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Prezzo: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Termini di pagamento: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000PCS Per Month
Contattaci
Pin di contatto: 9 perni Lunghezza del cavo: Come richiesto

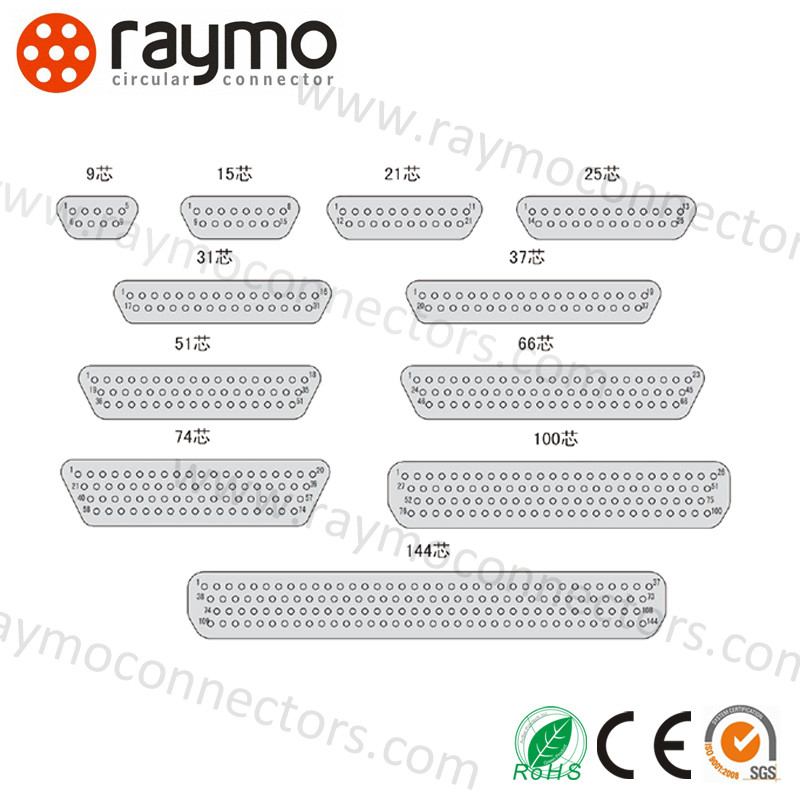

Perni disponibili: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 Tipo: Connettore
Conduttore centrale: Legatura di rame, placcatura d'oro Intervallo di temperatura: -55 ̊+125 °C
Valutazione di tensione: 250 V. Distanza della griglia: 2.54x2.54
Evidenziare:

J30J series 9-pin connector

,

250V electronic equipment connector

,

J30J series 9-pin 250V connector

J30J-21TJS 250V Voltage Rating The Perfect Combination for J30J Series Connector in Electronic Equipment
Product Specifications
Attribute Value
Contact Pin 9 Pins
Cable Length As Require
Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Type Connector
Center Conductor Copper Alloy, Gold Plating
Temperature Range -55～+125 ℃
Voltage Rating 250V
Grid Distance 2.54×2.54
Product Overview

The J30J series connector is a highly reliable and versatile product designed for various industrial applications. With customizable cable length and durable construction, it provides secure connections between devices and systems.

Key Features
  • Mating Cycle: 500 Times for long-lasting durability
  • Application: Electronic Equipment
  • Precise Grid Distance: 2.54*2.54 for accurate alignment
  • Contact Pin: 9 Pins configuration (other options available)
  • Withstanding Voltage: 500VAC for safety and reliability
Technical Parameters
Parameter Value
Voltage Rating 250V
Application Electronic Equipment
Mating Cable AFR-250, White Wire 0.1~0.15mm²
Wire Length 50cm, 500mm
Withstanding Voltage 500VAC
Temperature Range -55～+125 ℃
Mating Cycle 500 Times
Leak Rate ≤1.01X10^-3 Pa.cm³/s
Applications

The J30J series connector is ideal for:

  • MWDM Glenair Micro-D connectors in space-constrained applications
  • MDM series connector applications requiring durable performance
  • Various industrial environments requiring CE, RoHS, REACH, and ISO9001:2015 certified components
Support and Services

Our comprehensive support includes:

  • Dedicated technical assistance for product inquiries and troubleshooting
  • Maintenance services and product updates
  • Warranty support for long-term reliability
