Casa ProdottiCollegatore 2PM2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy

2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy

2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy
2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy
2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy 2PM Connector 5-40A Working Current 500 Mating Cycles Aluminum Alloy
Informazioni di base
Marca: Raymo
Certificazione: CE/RoHs/REACH/ISO9001:2015
Numero di modello: 2р м 27к 24г 1в1 в
Minimum Order Quantity: 5
Prezzo: 1-9.99 USD
Packaging Details: CTN
Delivery Time: 2-3 WEEKS
Termini di pagamento: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000PCS Per Month
Contattaci
Corrente di lavoro: 5-40a Caratteristiche: Alta durata, facile da installare
Cicli di accoppiamento: 500 volte Materiale: Metallo
Contatti: 4/7/8/10/19/20/22/24/32/45/50 Pin Metodo di connessione: Connessione del filo
Materiale a guscio: Lega di alluminio Serie del connettore: connettori 2PM 2PX
Evidenziare:

2PM connector 5-40A current

,

aluminum alloy 2PM connector

,

2PM connector 500 mating cycles

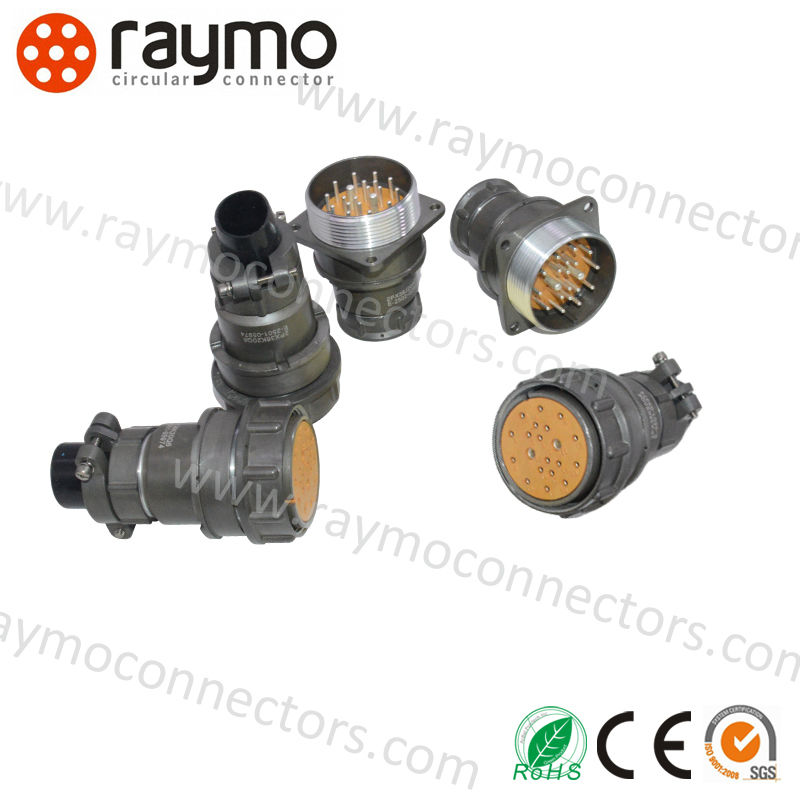

2РМТ 27КПН 24Г 1В1 В Working Current 5-40A and Temperature Range -60-200 2PM Connector with Bakelite Insulator
Product Overview
The 2PM Connector is a versatile and reliable electrical component designed for demanding connectivity requirements. With 500 mating cycles, it offers long-lasting performance and exceptional reliability across various applications.
Key Specifications
Working Current 5-40A
Mating Cycles 500 Times
Material Metal
Contacts 4/7/8/10/19/20/22/24/32/45/50 Pin
Connection Method Thread Connection
Shell Material Aluminum Alloy
Temperature Range -60°C to 200°C
Product Features
  • High durability with 500 mating cycles
  • Easy to install with thread connection
  • Multiple contact configurations (4-50 pins)
  • Robust aluminum alloy shell
  • Wide operating temperature range (-60°C to 200°C)
  • Copper contacts with silver/gold plating
  • Bakelite insulator for superior protection
Technical Parameters
Parameter Value
Contact Material Copper With Silver/Gold Plated
Voltage Rating 250V
Termination Style Solder
Mounting Style Through Hole
Shell Size Options 14/18/22/24/27/30/33/36/39/42/45
Applications
The 2PM Connector is ideal for industrial, commercial, and consumer applications requiring reliable electrical connections. Its robust design makes it suitable for harsh environments and applications demanding frequent connections.
Certifications & Compliance
CE, RoHS, REACH, and ISO9001:2015 certified, ensuring quality and environmental compliance.
Support & Services
Comprehensive technical support available for troubleshooting, configuration, and optimal performance of the connector.
